HONTKO_拉線式位移計

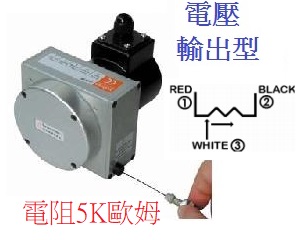

• HPS-M1系列拉線式位移計
• 目錄可到檔案下載區下載
• 量測行程:500~~4000mm
• 精確度:0.3%F.S,壽命100萬次
• 精確度-F:0.15%F.S,壽命500萬次
• 精確度-F25:0.3%F.S,壽命500萬次
• 重覆性:0.05%F.S,保護等級:IP64
• 最大往復速度:1000mm/Sec
• 工作溫度:0~70度C
• 拉力:1000mm以下600g,1500mm以上1000g
• 區分二種機型
• 輸出輸入電壓:輸入10~30Vdc,輸出0~5Vdc
• 輸出輸入電壓:輸入15~30Vdc,輸出0~10Vdc
• 壽命:一般100萬次,產品型號最後加F:500萬次

產品訂購型號:目錄可到檔案下載區下載

• 輸入電壓:15-30VdC,/輸出電壓0~10Vdc
• 精確度:0.3%F.S
• 壽命100萬次
HPS-M1-05-10V     行程500mm拉線式位移計,0.3%F.S,輸出0~10Vdc,
HPS-M1-075-10V    行程750mm拉線式位移計,0.3%F.S,輸出0~10Vdc
HPS-M1-10-10V     行程1000mm拉線式位移計,0.3%F.S,輸出0~10Vdc,
HPS-M1-15-10V     行程1500mm拉線式位移計,0.3%F.S,輸出0~10Vdc
HPS-M1-20-10V     行程2000mm拉線式位移計,0.3%F.S,輸出0~10Vdc
HPS-M1-30-10V     行程3000mm拉線式位移計,0.3%F.S,輸出0~10Vdc
HPS-M1-40-10V     行程4000mm拉線式位移計,0.3%F.S,輸出0~10Vdc
HPS-M1-50-10V     行程5000mm拉線式位移計,0.3%F.S,輸出0~10Vdc

• 輸入電壓:10-30VdC,/輸出電壓0~5Vdc
• 精確度:0.3%F.S
• 壽命100萬次
HPS-M1-05-5V     行程500mm拉線式位移計,0.3%F.S,輸出0~5Vdc,
HPS-M1-075-5V    行程750mm拉線式位移計,0.3%F.S,輸出0~5Vdc
HPS-M1-10-5V     行程1000mm拉線式位移計,0.3%F.S,輸出0~5Vdc,
HPS-M1-15-5V     行程1500mm拉線式位移計,0.3%F.S,輸出0~5Vdc
HPS-M1-20-5V     行程2000mm拉線式位移計,0.3%F.S,輸出0~5Vdc
HPS-M1-30-5V     行程3000mm拉線式位移計,0.3%F.S,輸出0~5Vdc
HPS-M1-40-5V     行程4000mm拉線式位移計,0.3%F.S,輸出0~5Vdc
HPS-M1-50-5V     行程5000mm拉線式位移計,0.3%F.S,輸出0~5Vdc

• 輸入電壓:15-30VdC,/輸出電壓0~10Vdc
• 精確度:0.3%F.S
• 壽命500萬次
HPS-M1-05-10V-F25     行程500mm拉線式位移計,0.3%F.S,輸出0~10Vdc,
HPS-M1-075-10V-F25    行程750mm拉線式位移計,0.3%F.S,輸出0~10Vdc
HPS-M1-10-10V-F25     行程1000mm拉線式位移計,0.3%F.S,輸出0~10Vdc,
HPS-M1-15-10V-F25     行程1500mm拉線式位移計,0.3%F.S,輸出0~10Vdc
HPS-M1-20-10V-F25     行程2000mm拉線式位移計,0.3%F.S,輸出0~10Vdc
HPS-M1-30-10V-F25     行程3000mm拉線式位移計,0.3%F.S,輸出0~10Vdc
HPS-M1-40-10V-F25     行程4000mm拉線式位移計,0.3%F.S,輸出0~10Vdc
HPS-M1-50-10V-F25     行程5000mm拉線式位移計,0.3%F.S,輸出0~10Vdc

• 輸入電壓:15-30VdC,/輸出電壓0~10Vdc
• 精確度:0.15%F.S
• 壽命500萬次
HPS-M1-05-10V-F     行程500mm拉線式位移計,0.15%F.S,輸出0~10Vdc,
HPS-M1-075-10V-F    行程750mm拉線式位移計,0.15%F.S,輸出0~10Vdc
HPS-M1-10-10V-F     行程1000mm拉線式位移計,0.15%F.S,輸出0~10Vdc,
HPS-M1-15-10V-F     行程1500mm拉線式位移計,0.15%F.S,輸出0~10Vdc
HPS-M1-20-10V-F     行程2000mm拉線式位移計,0.15%F.S,輸出0~10Vdc
HPS-M1-30-10V-F     行程3000mm拉線式位移計,0.15%F.S,輸出0~10Vdc
HPS-M1-40-10V-F     行程4000mm拉線式位移計,0.15%F.S,輸出0~10Vdc
HPS-M1-50-10V-F     行程5000mm拉線式位移計,0.15%F.S,輸出0~10Vdc

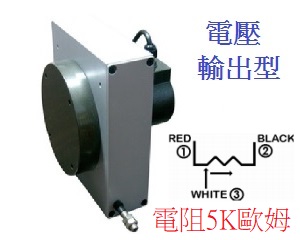

• HPS-L1系列拉線式位移計
• 目錄可到檔案下載區下載
• 量測行程:3000~8000mm
• 精確度:0.3%F.S,壽命100萬次
• 精確度-F:0.15%F.S,壽命500萬次
• 精確度-F25:0.3%F.S,壽命500萬次
• 重覆性:0.05%F.S,保護等級:IP64
• 最大往復速度:600mm/Sec
• 工作溫度:0~70度C
• 拉力:小於2200g
• 區分二種機型
• 輸出輸入電壓:輸入10~30Vdc,輸出0~5Vdc
• 輸出輸入電壓:輸入15~30Vdc,輸出0~10Vdc
• 壽命:一般100萬次,產品型號最後加F:500萬次

產品訂購型號:目錄可到檔案下載區下載

• 輸入電壓:15-30VdC,/輸出電壓0~10Vdc
• 精確度:0.3%F.S
• 壽命100萬次
•HPS-L1-30-10V     行程3000mm拉線式位移計,0.3%F.S,輸出0~10Vdc
•HPS-L1-40-10V     行程4000mm拉線式位移計,0.3%F.S,輸出0~10Vdc
•HPS-L1-50-10V     行程5000mm拉線式位移計,0.3%F.S,輸出0~10Vdc
•HPS-L1-60-10V     行程6000mm拉線式位移計,0.23%F.S,輸出0~10Vdc
•HPS-L1-80-10V     行程8000mm拉線式位移計,0.3%F.S,輸出0~10Vdc

• 輸入電壓:10-30VdC,/輸出電壓0~5Vdc
• 精確度:0.3%F.S
• 壽命100萬次
•HPS-L1-30-5V     行程3000mm拉線式位移計,0.3%F.S,輸出0~5Vdc
•HPS-L1-40-5V     行程4000mm拉線式位移計,0.3%F.S,輸出0~5Vdc
•HPS-L1-50-5V     行程5000mm拉線式位移計,0.3%F.S,輸出0~5Vdc
•HPS-L1-60-5V     行程6000mm拉線式位移計,0.3%F.S,輸出0~5Vdc
•HPS-L1-80-5V     行程8000mm拉線式位移計,0.3%F.S,輸出0~5Vdc

• 輸入電壓:15-30VdC,/輸出電壓0~10Vdc
• 精確度:0.3%F.S
• 壽命500萬次
•HPS-L1-30-10V-F25     行程3000mm拉線式位移計,0.3%F.S,輸出0~10Vdc
•HPS-L1-40-10V-F25     行程4000mm拉線式位移計,0.3%F.S,輸出0~10Vdc
•HPS-L1-50-10V-F25     行程5000mm拉線式位移計,0.3%F.S,輸出0~10Vdc
•HPS-L1-60-10V-F25     行程6000mm拉線式位移計,0.3%F.S,輸出0~10Vdc
•HPS-L1-80-10V-F25     行程8000mm拉線式位移計,0.3%F.S,輸出0~10Vdc

• 輸入電壓:15-30VdC,/輸出電壓0~10Vdc
• 精確度:0.15%F.S
• 壽命500萬次
•HPS-L1-30-10V-F     行程3000mm拉線式位移計,0.15%F.S,輸出0~10Vdc
•HPS-L1-40-10V-F     行程4000mm拉線式位移計,0.15%F.S,輸出0~10Vdc
•HPS-L1-50-10V-F     行程5000mm拉線式位移計,0.15%F.S,輸出0~10Vdc
•HPS-L1-60-10V-F     行程6000mm拉線式位移計,0.15%F.S,輸出0~10Vdc
•HPS-L1-80-10V-F     行程8000mm拉線式位移計,0.15%F.S,輸出0~10Vdc

• HLS-系列拉線式位移編碼器
• 目錄可到檔案下載區下載
• 量測行程:1000~12000mm(分成三種機型)
• 區分Push-Pull推輓輸出或Line-Driver
• 解析度性:區分不同機型,保護等級:IP64
• 輸入電壓區分:DC5V~DC26V
• 最大往復速度:1000mm/Sec
• 工作溫度:0~60度C
• S-TYPE拉力:最大700g
• M-TYPE拉力:小於2米600g以下,大於2米900g以下
• L-TYPE拉力:1500~2000g
• 輸出:脈波ABZ相
• 壽命:一般100萬次

產品訂購型號:目錄可到檔案下載區下載

HLS-S-10-*,精確度:0.05%F.S,附50公分線,輸入電壓5~26Vdc
型號:  -P= Push-Pull,-H=Line-Driver
• HLS-S-10-1A-H    行程1000mm,解析度1mm/1脈波,輸出ABZ相/Line-Driver
• HLS-S-10-01A-H    行程1000mm,解析度0.1mm/1脈波,輸出ABZ相/Line-Driver
• HLS-S-10-02A-H    行程1000mm,解析度0.2mm/1脈波,輸出ABZ相/Line-Driver
• HLS-S-10-05A-H    行程1000mm,解析度0.5mm/1脈波,輸出ABZ相/Line-Driver
• HLS-S-10-004A-H    行程1000mm,解析度0.04mm/1脈波,輸出ABZ相/Line-Driver

• HLS-S-10-1A-P    行程1000mm,解析度1mm/1脈波,輸出ABZ相/Push-Pull
• HLS-S-10-01A-P    行程1000mm,解析度0.1mm/1脈波,輸出ABZ相/Push-Pull
• HLS-S-10-02A-P    行程1000mm,解析度0.2mm/1脈波,輸出ABZ相/Push-Pull
• HLS-S-10-05A-P    行程1000mm,解析度0.5mm/1脈波,輸出ABZ相/Push-Pull
• HLS-S-10-004A-P    行程1000mm,解析度0.04mm/1脈波,輸出ABZ相/Push-Pull

HLS-M-10-*,精確度:0.03%F.S,附100公分線,輸入電壓5~26Vdc
型號:  -P= Push-Pull,-H=Line-Driver
• HLS-M-10-1A-H    行程1000mm,解析度1mm/1脈波,輸出ABZ相/Line-Driver
• HLS-M-10-01A-H    行程1000mm,解析度0.1mm/1脈波,輸出ABZ相/Line-Driver
• HLS-M-10-02A-H    行程1000mm,解析度0.2mm/1脈波,輸出ABZ相/Line-Driver
• HLS-M-10-05A-H    行程1000mm,解析度0.5mm/1脈波,輸出ABZ相/Line-Driver
• HLS-M-10-004A-H    行程1000mm,解析度0.04mm/1脈波,輸出ABZ相/Line-Driver
• HLS-M-10-005A-H    行程1000mm,解析度0.05mm/1脈波,輸出ABZ相/Line-Driver

HLS-M-20-*,精確度:0.05%F.S,附100公分線,輸入電壓5~26Vdc
型號:  -P= Push-Pull,-H=Line-Driver
• HLS-M-20-1A-H    行程2000mm,解析度1mm/1脈波,輸出ABZ相/Line-Driver
• HLS-M-20-01A-H    行程2000mm,解析度0.1mm/1脈波,輸出ABZ相/Line-Driver
• HLS-M-20-02A-H    行程2000mm,解析度0.2mm/1脈波,輸出ABZ相/Line-Driver
• HLS-M-20-05A-H    行程2000mm,解析度0.5mm/1脈波,輸出ABZ相/Line-Driver
• HLS-M-20-004A-H    行程2000mm,解析度0.04mm/1脈波,輸出ABZ相/Line-Driver
• HLS-M-20-005A-H    行程2000mm,解析度0.05mm/1脈波,輸出ABZ相/Line-Driver

HLS-M-30-*,精確度:0.05%F.S,附100公分線,輸入電壓5~26Vdc
型號:  -P= Push-Pull,-H=Line-Driver
• HLS-M-30-1A-H    行程3000mm,解析度1mm/1脈波,輸出ABZ相/Line-Driver
• HLS-M-30-01A-H    行程3000mm,解析度0.1mm/1脈波,輸出ABZ相/Line-Driver
• HLS-M-30-02A-H    行程3000mm,解析度0.2mm/1脈波,輸出ABZ相/Line-Driver
• HLS-M-30-05A-H    行程3000mm,解析度0.5mm/1脈波,輸出ABZ相/Line-Driver
• HLS-M-30-004A-H    行程3000mm,解析度0.04mm/1脈波,輸出ABZ相/Line-Driver
• HLS-M-30-005A-H    行程3000mm,解析度0.05mm/1脈波,輸出ABZ相/Line-Driver

HLS-M-50-*,精確度:0.05%F.S,附100公分線,輸入電壓5~26Vdc
型號:  -P= Push-Pull,-H=Line-Driver
• HLS-M-50-1A-H    行程5000mm,解析度1mm/1脈波,輸出ABZ相/Line-Driver
• HLS-M-50-01A-H    行程5000mm,解析度0.1mm/1脈波,輸出ABZ相/Line-Driver
• HLS-M-50-02A-H    行程5000mm,解析度0.2mm/1脈波,輸出ABZ相/Line-Driver
• HLS-M-50-05A-H    行程5000mm,解析度0.5mm/1脈波,輸出ABZ相/Line-Driver
• HLS-M-50-004A-H    行程5000mm,解析度0.04mm/1脈波,輸出ABZ相/Line-Driver
• HLS-M-50-005A-H    行程5000mm,解析度0.05mm/1脈波,輸出ABZ相/Line-Driver

HLS-L-60-*,精確度:0.05%F.S,附50公分線,輸入電壓5~26Vdc
型號:  -P= Push-Pull,-H=Line-Driver
• HLS-L-60-1A-H    行程6000mm,解析度1mm/1脈波,輸出ABZ相/Line-Driver
• HLS-L-60-01A-H    行程6000mm,解析度0.1mm/1脈波,輸出ABZ相/Line-Driver
• HLS-L-60-02A-H    行程6000mm,解析度0.2mm/1脈波,輸出ABZ相/Line-Driver
• HLS-L-60-05A-H    行程6000mm,解析度0.5mm/1脈波,輸出ABZ相/Line-Driver

HLS-L-80-*,精確度:0.05%F.S,附50公分線,輸入電壓5~26Vdc
型號:  -P= Push-Pull,-H=Line-Driver
• HLS-L-80-1A-H    行程8000mm,解析度1mm/1脈波,輸出ABZ相/Line-Driver
• HLS-L-80-01A-H    行程8000mm,解析度0.1mm/1脈波,輸出ABZ相/Line-Driver
• HLS-L-80-02A-H    行程8000mm,解析度0.2mm/1脈波,輸出ABZ相/Line-Driver
• HLS-L-80-05A-H    行程8000mm,解析度0.5mm/1脈波,輸出ABZ相/Line-Driver

HLS-L-100-*,精確度:0.05%F.S,附50公分線,輸入電壓5~26Vdc
型號:  -P= Push-Pull,-H=Line-Driver
• HLS-L-100-1A-H    行程10000mm,解析度1mm/1脈波,輸出ABZ相/Line-Driver
• HLS-L-100-01A-H    行程10000mm,解析度0.1mm/1脈波,輸出ABZ相/Line-Driver
• HLS-L-100-02A-H    行程10000mm,解析度0.2mm/1脈波,輸出ABZ相/Line-Driver
• HLS-L-100-05A-H    行程10000mm,解析度0.5mm/1脈波,輸出ABZ相/Line-Driver

HLS-L-120-*,精確度:0.05%F.S,附50公分線,輸入電壓5~26Vdc
型號:  -P= Push-Pull,-H=Line-Driver
• HLS-L-120-1A-H    行程12000mm,解析度1mm/1脈波,輸出ABZ相/Line-Driver
• HLS-L-120-01A-H    行程12000mm,解析度0.1mm/1脈波,輸出ABZ相/Line-Driver
• HLS-L-120-02A-H    行程12000mm,解析度0.2mm/1脈波,輸出ABZ相/Line-Driver
• HLS-L-120-05A-H    行程12000mm,解析度0.5mm/1脈波,輸出ABZ相/Line-Driver
